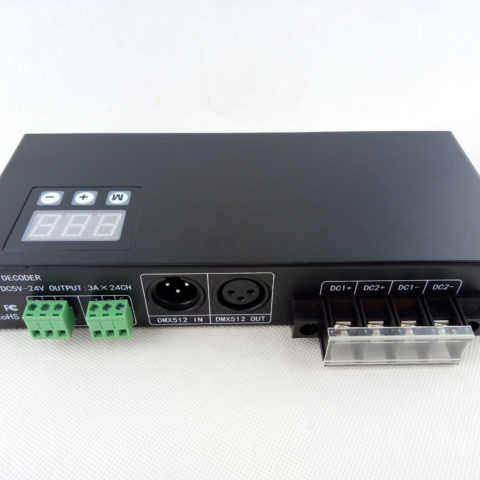

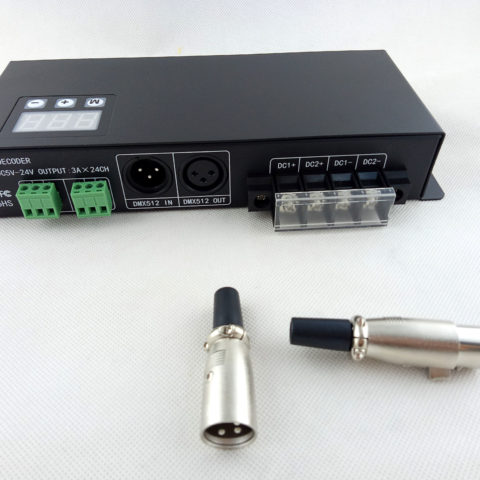

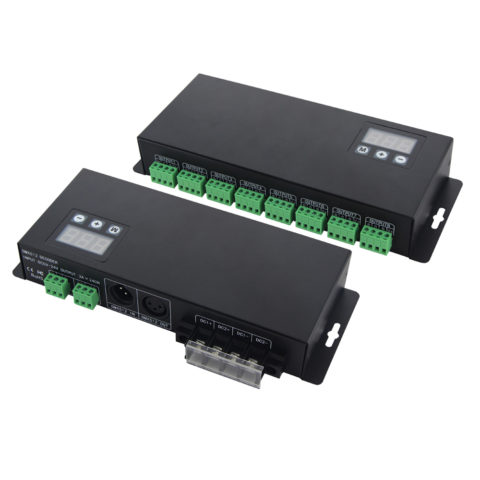

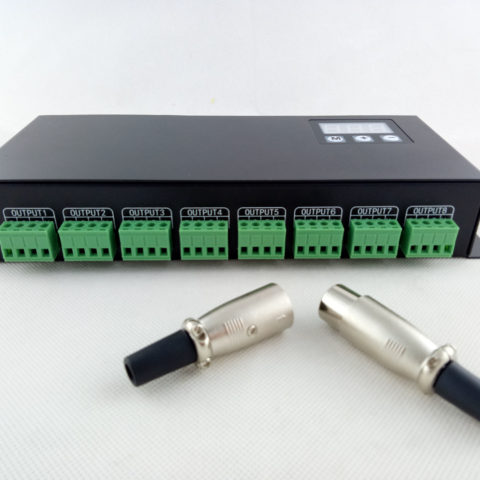

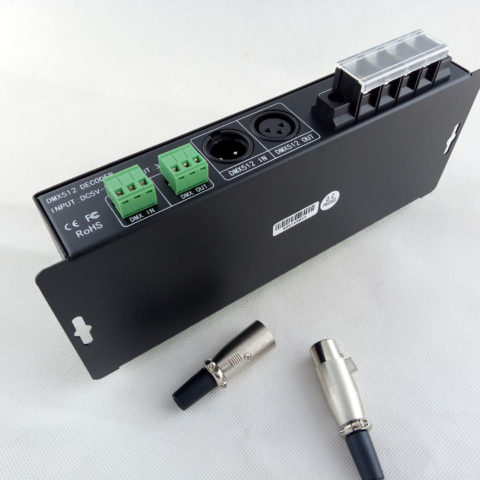

24 channel DMX512 Decoder
  • 24 channel DMX512 Decoder
  • 24 channel DMX512 Decoder
  • 24 channel DMX512 Decoder
  • 24 channel DMX512 Decoder
  • 24 channel DMX512 Decoder

Working temperature: 0-70 °C

Decode channel: 24 channel

Supply voltage: DC, +12-24V

External dimension: L340*W142*H57 mm

Packing size: L350*W180*H65 mm

Net weight: 1.5kg

Gross weight: 1.6kg

Power consumption: <0.25A(12V) ; <0.30A(24V)

Signal input: DMX-512 Standard digital signal

Signal output: 0-24V,  Max. 2A /CH

Power output: 12V:<576W,  24V:<1152W

Weight 2 kg
Dimensions 35 × 20 × 10 cm
